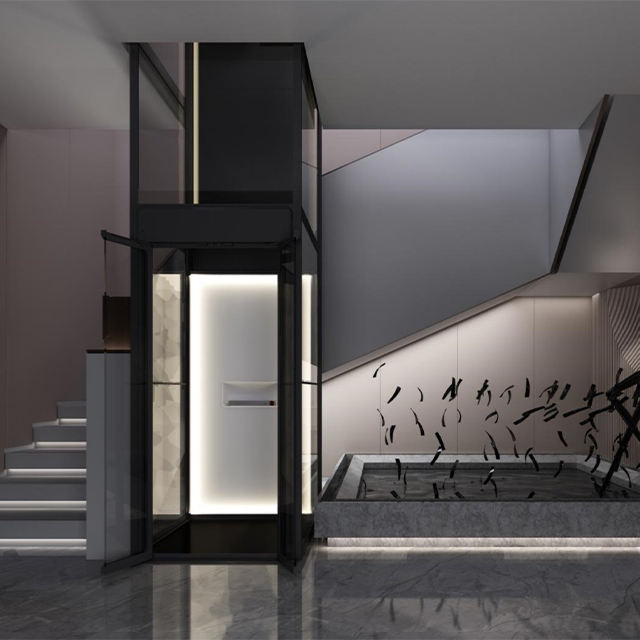

Indoor Residential Villa Elevator - Quiet Operation Smart Control Hydraulic Home Elevator

Product Features

Features of hydraulic drive home elevator

• No Need for a High-Cost, High-Spec Machine Room at the Top of the Hoistway

  It can be installed all the way up to the roof without requiring an expensive, high-standard machine room at the upper section of the hoistway.
• Flexible Machine Room Placement with Minimal Footprint

  The hydraulic drive system transmits power via oil pipes, allowing the machine room to be positioned adjacent to the hoistway. What’s more, the machine room only occupies a compact area of 2–3 m².
• Maximized Hoistway Space Utilization

  Unlike traction elevators, hydraulic elevators do not require counterweights. This design significantly boosts the space utilization rate of the hoistway.
• Low Structural Requirements for the Hoistway

  Vertical loads (including elevator car dead weight and rated load) are transferred directly to the hoistway ground via hydraulic cylinders. This greatly reduces structural requirements for the hoistway walls and top, lowering building modification costs.
• Superior Safety & Self-Rescue Capability

  Hydraulic elevators eliminate risks of overspeeding, loss of control, overtravel to the roof, or free fall to the bottom. With a well-designed mechanical structure and reliable installation, they boast an exceptionally high safety factor. Equipped with a backup battery, in case of power failure or elevator malfunction, passengers can trigger self-rescue by pressing the emergency button at the car bottom. This activates the oil discharge valve circuit, allowing hydraulic oil to flow slowly back to the oil tank. The elevator then descends gently under its own weight, enabling safe self-rescue.
• Robust Technical Performance: Safe, Reliable & High Load Capacity

  Hydraulic elevators lift the car based on the hydraulic jack principle, delivering stable, reliable operation and a large load-bearing capacity. Direct-acting hydraulic elevators, in particular, feature a simplified structure and a low failure rate, minimizing maintenance needs.

Product Parameters

Company Introduction

Oudi specializes in the research, development, and production of hydraulic pump stations, hydraulic control systems, villa elevators, lifting platforms, and customized elevator accessories, providing innovative, reliable, and efficient solutions trusted by clients worldwide.

Hydraulic Pump Station

Used in elevators, lifting platforms, and industrial machinery to provide stable and efficient hydraulic power.

Car Show Revolving Stage Lift Table

Widely used in auto showrooms and exhibitions to display vehicles dynamically and attractively.

Villa Elevator

Designed for private residences, offering safe, comfortable, and space-saving vertical transportation.

Work Platform

Ideal for construction, maintenance, and warehouse operations, ensuring safe and flexible work at height.

Visit the Factory

As a professional manufacturer of hydraulic and home lift accessories with many years of experience, our factory boasts advanced equipment and a comprehensive quality control system, ensuring every product is reliable and controllable from source to shipment.

Advanced Production Equipment: Equipped with high-precision equipment such as automatic welding machines and presses.

Packaging: Strict quality inspection and secure packaging ensure that products arrive in perfect condition.

International Exhibition Participation: We actively participate in domestic and international industry exhibitions to showcase our latest products and technologies.

Customer Visits and Partnerships: Regular visits from global customers deepen our partnership and trust.

Factory Real Photos	Factory Real Photos	Advanced Production Equipment
Packaging	International Exhibition Participation	Customer Visits and Partnerships

FAQS
